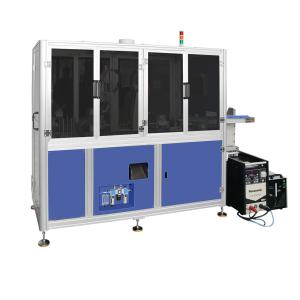

hot sale Automatic Tig Welding Equipment with two welding station
Product characteristics:
Increased Efficiency: The dual stations allow two separate welding processes to occur simultaneously or sequentially, reducing overall production time.
Improved Precision: Having two positions helps to ensure precise alignment of the tee pipe, which is critical for achieving high-quality welds, especially in complex piping systems.
Enhanced Flexibility: The double-position setup can accommodate different pipe sizes and configurations, offering flexibility for various welding requirements in industries like oil & gas, chemical processing, and construction.
Minimized Downtime: While one pipe is being welded in one position, the other can be prepared or set up in the second position, reducing idle time between welding cycles.
Technical date:
Model | OL-PA-ST-25 | OL-PA-DT-50 |
Applicative products | Automatic loading/unloading and automatic welding of press fittings, ring compression fittings, equal diameter and reducing diameter tee fittings, as well as internal and external threaded pipe fittings with sizes 15, 158, 16, 18, 20, 22, 22.2, 25.4, 28, and 286 | Automatic loading/unloading and automatic welding of press fittings, ring compression fittings, equal diameter and reducing diameter tee fittings, as well as internal and external threaded pipe fittings with sizes 32, 34, 35, 40, 42, 427, 486, 508, and 54 |
welding station | two | two |
Welding Current | 4-400A | 4-400A |
Applicative products | Tee fittings under DN25 | Tee fittings under ND32-50 |
Applicable thickness | 0.4-2mm | 0.8-2mm |
Working mode | DC/PULSE | DC/PULSE |
POWER supply | welding power: 15kw/380v/50hz control power:0.5kw/220v/50hz | welding power: 15kw/380v/50hz control power:0.5kw/220v/50hz |
Compressed air | 0.4-0.6 MPa with fully dry welding air | 0.4-0.6 MPa with fully dry welding air |
Coolong water | purified | purified |
Application
Aerospace and Shipbuilding Industry: Degreasing, degreasing and cleaning, paint removal, rust removal.
Automobile Manufacturing: Degreasing, cleaning of tire molds, removing coatings from galvanized sheets before welding.
Electronics and Semiconductor Industry: Cleaning of silicon wafers.
Marine, Railway, and Bridge Industry: Rust removal, paint removal.
Chemical, Food, and Medical Industries: Cleaning small holes in thin metal filter plates.
Building Cleaning: General cleaning of buildings.
Nuclear Power Plant Reactor Pipe Cleaning: Cleaning of pipes inside nuclear reactor systems.
Factory work shop
Exhibiton:
Certificate
Package:
|
|
